With over a decade of experience, NEP excels in advanced energy conversion solutions for residential, commercial, and industrial sectors worldwide.
Our track record boasts 500,000+ top-tier microinverters and fast shutdown MLPE products supplied to customers in 35+ countries.
Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

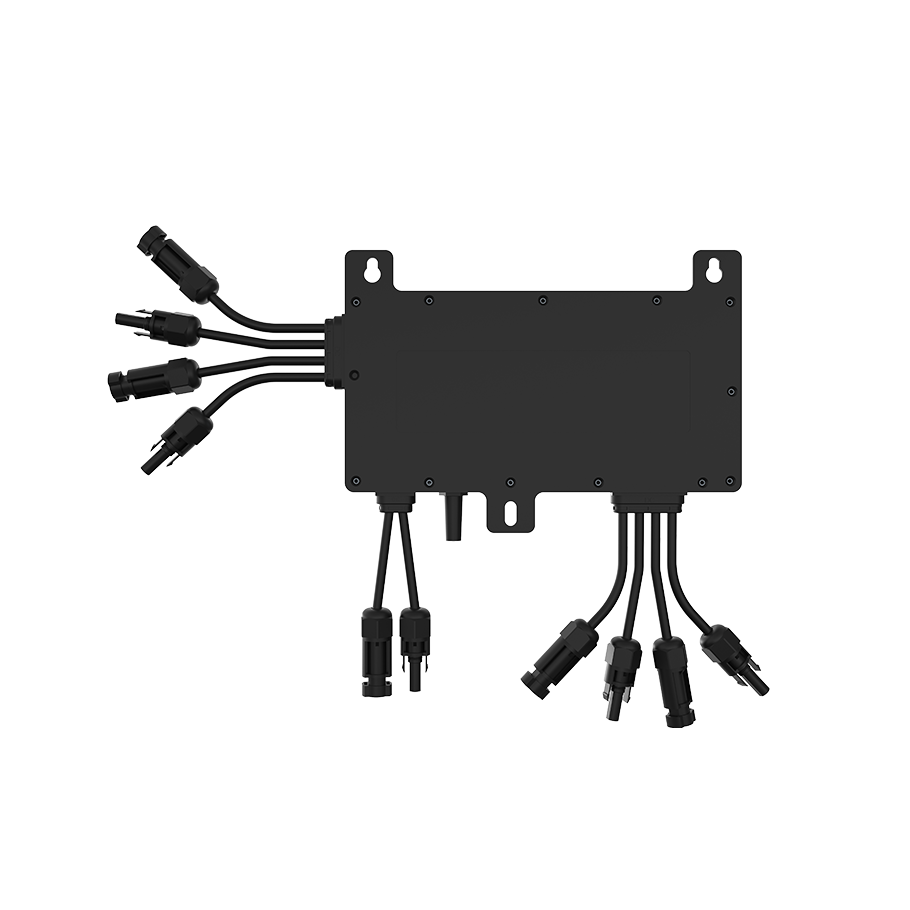

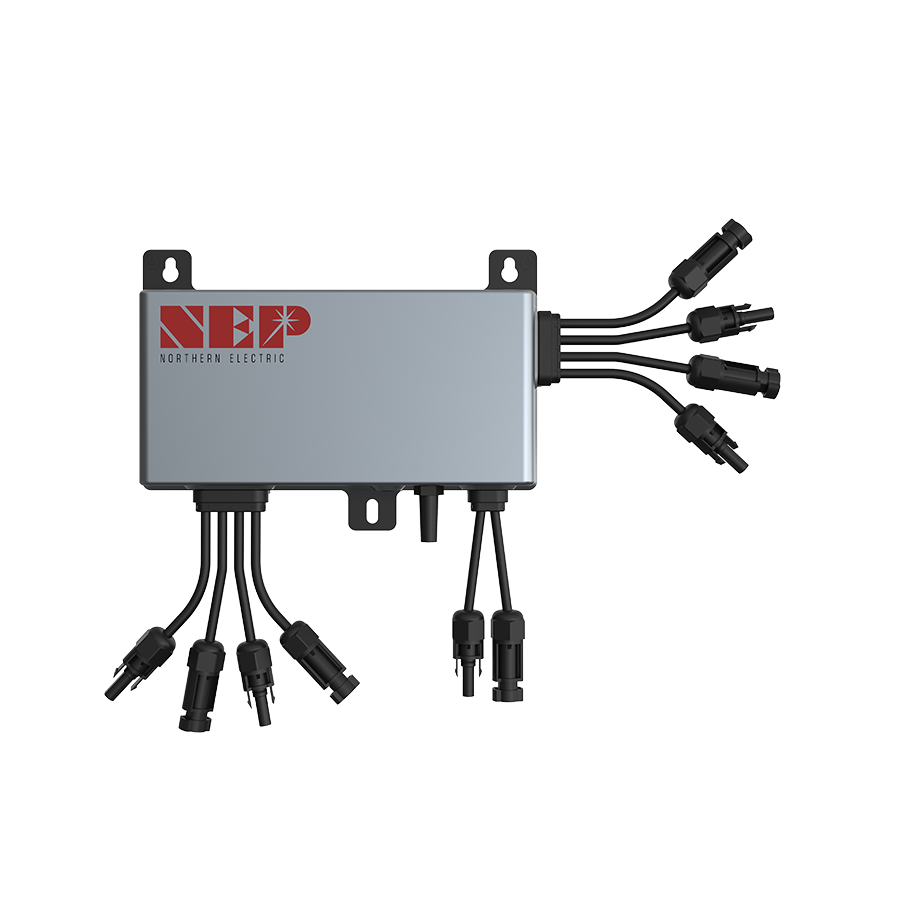

Simple and practical design
Dimensions: 7.09'' x 7.32'' x 0.98'' weight of 3.3 lbs,
Operating temperature of -40°F to +185°F. Natural
convection cooling system.
Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated ground connection for easy installation.
| Recommended PV Module Power Range /W | 750 x 2 |
| MPPT Voltage Range /V | 22-55 |
| Startup Voltage /V | 24 |
| Max. Input Voltage /V | 60 |
| Max. Input Current /A | 15 x 2 |
| Min. Input Voltage /V | 20 |
| Max. DC Short Circult Current /A | 20 x 2 |
| Max. Input power /W | 1000 |
| Max. Input Current /A | 20 |
| Rated Voltage /V | 51.2 |
| Max. Output Power /W | 1000 |
| Max. Output Current /A | 20 |
| Rated Voltage /V | 51.2 |
| Recommended. Microinverter Power /W | less than 1000W |
| Max. Output Power /W | 1000W |
| Max. Output Current /A | 20 |
| Nominal Voltage Range /V | 22-60 |
| Peak Efficiency /% | 97.30 |
| MPPT Efficiency /% | >99.5 |
| Overvoltage Protection | Intergrated |
| Overcurrent Protection | Intergrated |
| Short Circuit Protection | Intergrated |
| Temperature Protection | Intergrated |
| Operating Ambient Temperature Range/℃ | -40~65 |
| Relative Humidity Range | 0-100% |
| Dimensions (W x H x D) /mm | 180 x 244 x 31 |
| Weight (not including battery) /kg | 2.2 |
| Communication Method | WiFi |
| Protection Class | IP-66&67 |
