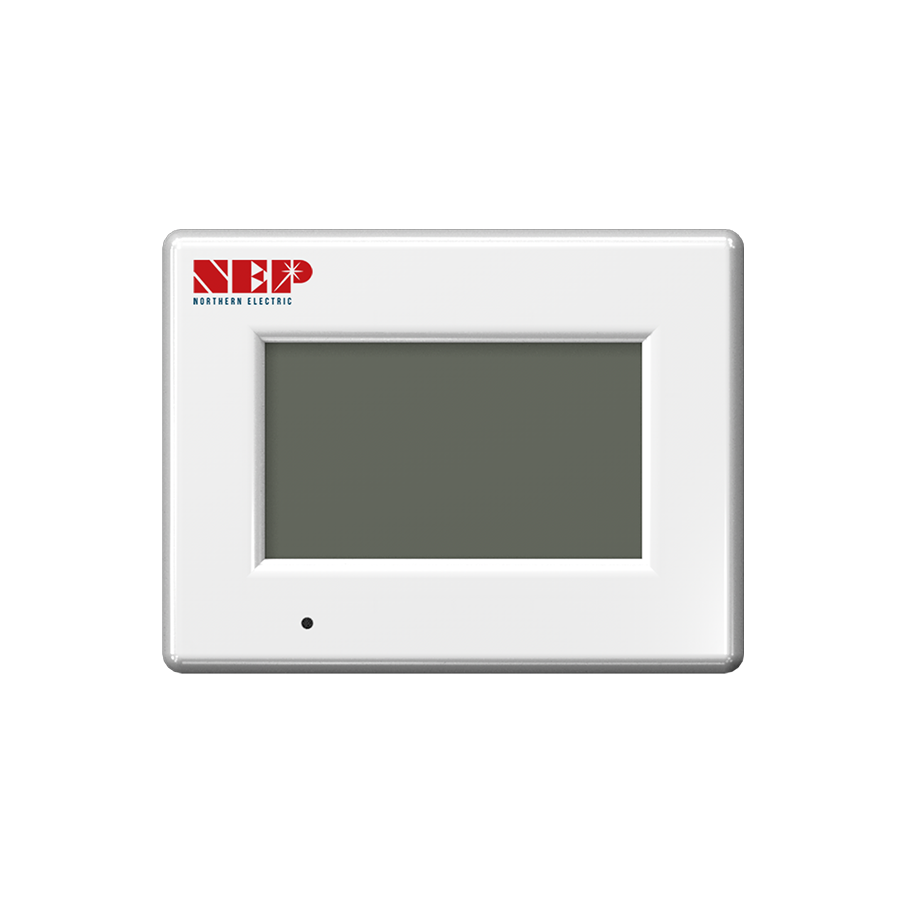

Gateway BDG-256 P3

With over a decade of experience, NEP excels in advanced energy conversion solutions for residential, commercial, and industrial sectors worldwide.

Our track record boasts 500,000+ top-tier microinverters and fast shutdown MLPE products supplied to customers in 35+ countries.

Clean
Affordable
Reliable
Efficient
Monitors Gateways
Our advantage
1
International certificates

Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

2
Simple and practical design

Simple and practical design

Dimensions: 7.09'' x 7.32'' x 0.98'' weight of 3.3 lbs,

Operating temperature of -40°F to +185°F. Natural

convection cooling system.


3
Simple installation

Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated ground connection for easy installation.

Product characteristics
Gateway BDG-256 P3
Communications Interface
Communication with Micro InverterAC Power Line Communication
Communication with RSDDC Power Line Communication
Ethernet10/100 auto-sensing, auto-negotiation
USBUSB 2.0 interface, auto-sensing, auto-negation
Wi-FiSupport (accessory required)
Monitoring capacity 255 mirco inverters or RSD


Human Interface
Display 7-in LCD touch screen


Power Requirements
AC inletThree-phase
208 Vac, 380Vac, 50/60 Hz
Power consumption 8 watts maximum


Mechanical Data
Dimensions (W x H x D)7.83" x 6.34" x 1.81" (199mm x 161mm x 46mm)
Weight 5.29 oz (150g)
Ambient temperature range -40℃+55 (-40  ℃ to +131 ̊F)
-40℃+49 ̊F (-40  ℃ to +120 ̊F)
Cooling Natural Convection - no fans
Environmental ratingIP30. For installation indoors or in an NRTL -certified, NEMA type 3R enclosure.


Features
Standard warranty term 1 Year
Compliance UL 60950-1 2 nd Edition Rev Dec 19, 2011
CSA C22.2 2 nd Edition Rev Dec 19, 2011
FCC Part 15 Class B
AS/NZS 60950.1:2011 Inc A1
AS/NZS CISPR 22: 2009+A1:2010
EN 60950-1:2006+A11:2009+A1:2010
+A12:2011 EN 55022:201
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55024:2010
EMC Directive 2004/108/EC
