With over a decade of experience, NEP excels in advanced energy conversion solutions for residential, commercial, and industrial sectors worldwide.
Our track record boasts 500,000+ top-tier microinverters and fast shutdown MLPE products supplied to customers in 35+ countries.
Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

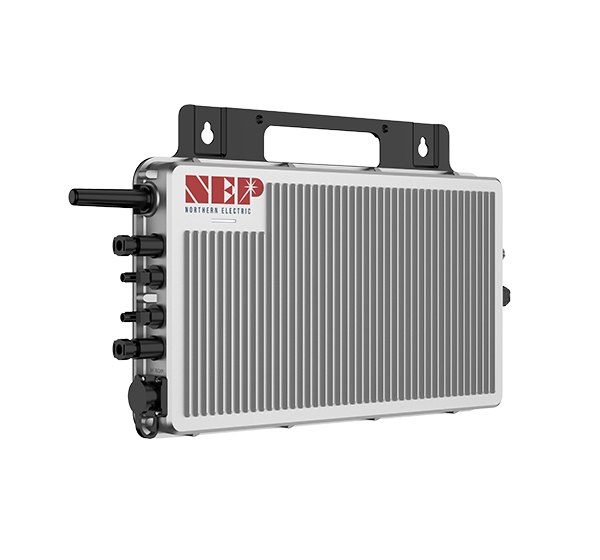

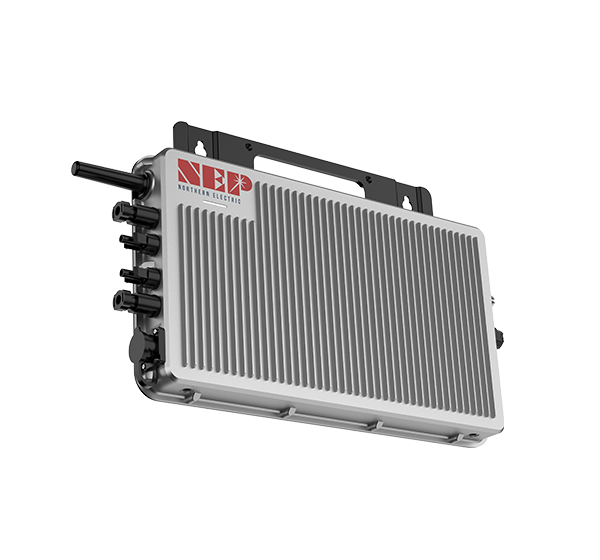

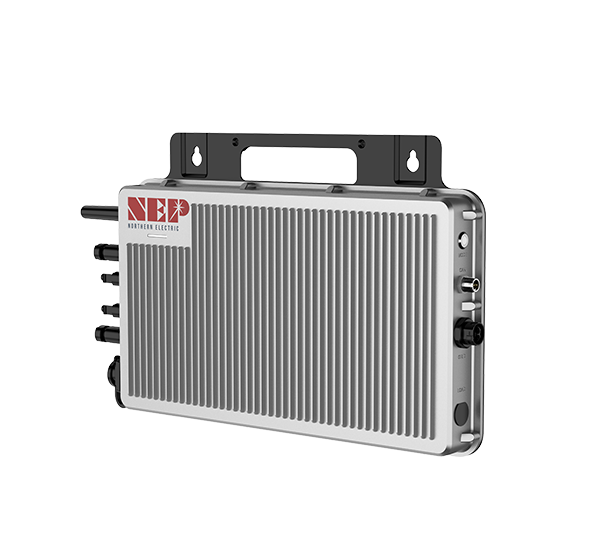

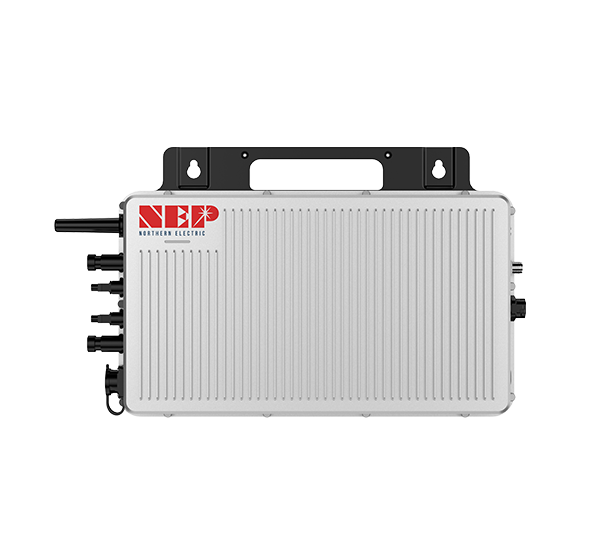

Simple and practical design
Dimensions: 7.09'' x 7.32'' x 0.98'' weight of 3.3 lbs,
Operating temperature of -40°F to +185°F. Natural
convection cooling system.
Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated ground connection for easy installation.
| Recommended. PV Module /W | BDHX-1000：600 x 2 BDHX-2000：600 x 4 |
| MPPT Voltage Range /V | 22-55 |
| Startup Voltage /V | 25 |
| Max. Input Voltage /V | 60 |
| Max. DC Short Circuit Current /A | BDHX-1000：20 x 2 BDHX-2000：40 x 2 |
| PV Overvoltage Protection Category II | II |
| Recommended. PV Module /W | BDHX-1000：1000 BDHX-2000：2000 |
| Rated AC Output Voltage/V | 230 |
| Max. Continuous Output Current /A | BDHX-1000：4.35 BDHX-2000：8.69 |
| Nominal Frequency /Hz | 50/60 |
| Power Factor | -0.8—+0.8 |
| THD @ rated power | <5%(at rated power) |
| Rated AC Output Voltage/V | 230 |
| Rated AC Output Power/VA | BDHX-1000：1000 BDHX-2000：2000 |
| Nominal Frequency/Hz | 50/60 |
| Max AC Output Power/W | BDHX-1000：2000(last for 20s) BDHX-2000：3000(last for 20s) |
| Battery Type | LFP |
| Battery Voltage/V | 40-60 |
| PV Max Charge current/A | BDHX-1000：30 BDHX-2000：40 |
| AC Charge rated power/W | BDHX-1000：1000 BDHX-2000：2000 |
| Max Discharge power/W | BDHX-1000：1000 BDHX-2000：2000 |
| Operating Ambient Temperature Range/℃ | -40 ~+65 |
| Communications | Wifi/ blue tooth |
| Protection Class | IP65 |
| Cooling | Natural convection |
| UPS function | YES |
| OFF-Grid output paralell | 4PCS |
