With over a decade of experience, NEP excels in advanced energy conversion solutions for residential, commercial, and industrial sectors worldwide.
Our track record boasts 500,000+ top-tier microinverters and fast shutdown MLPE products supplied to customers in 35+ countries.
Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

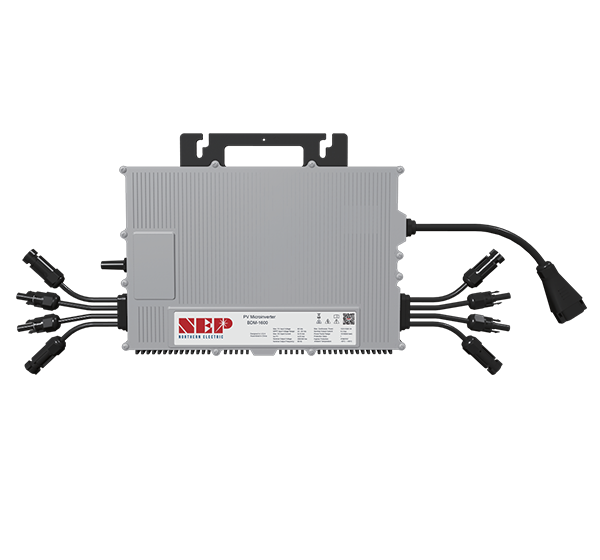

Simple and practical design
Dimensions: 7.09'' x 7.32'' x 0.98'' weight of 3.3 lbs,
Operating temperature of -40°F to +185°F. Natural
convection cooling system.
Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated ground connection for easy installation.
| Recommended Max PV Power | 400 to 670W |
| Max DC Open Circuit Voltage | 65Vdc |
| Max DC Input Current | 20A X 4 |
| MPPT Tracking Accuracy | >99.8% |
| MPPT Tracking Range | 18~60Vdc |
| ISC PV (Absolute Maximum) | 25A X 4 |
| Maximum Backfeed Current to Array | BDM-2000T-208：0A BDM-2000T-480：0A 0A |
| Peak AC Output Power | 2250W |
| Max Continuous Output Power(Three phase) | 2000W |
| Nominal Power Grid Voltage | BDM-2000T-208：208Vac BDM-2000T-480：480Vac |
| Allowable Power Grid Voltage | BDM-2000T-208：183-228 Vac,3φ BDM-2000T-480：422-528 Vac,3φ |
| Rated Output Current | BDM-2000T-208：6.3A BDM-2000T-480：2.7A |
| Allowable Power Grid Frequency | 55Hz-65Hz |
| THD | < 3% (at rated power) |
| Power Factor | >0.99 default 0.8leading~0.8lagging |
| Nominal Frequency | 60Hz |
| Weighted Average Efficiency (CEC) | 96.5% |
| Nighttime Tare Loss | 0.2W |
| Over/Under Voltage Protection | YES |
| Over/Under Frequency Protection | YES |
| Anti-Islanding Protection | YES |
| Over Current Protection | YES |
| Reverse DC Polarity Protection | YES |
| Overload Protection | YES |
| Protection Degree | NEMA-6 / IP-66 / IP-67 |
| Ambient Temperature | -40°F to +149°F (-40°C to +65°C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Display | LED Light |
| Communications | Power line Communications / WiFi |
| Environment Category | Indoor and outdoor |
| Wet Location | Suitable |
| Pollution Degree | PD 3 |
| Over Voltage Category | II(PV), III (AC MAINS) |
