With over a decade of experience, NEP excels in advanced energy conversion solutions for residential, commercial, and industrial sectors worldwide.
Our track record boasts 500,000+ top-tier microinverters and fast shutdown MLPE products supplied to customers in 35+ countries.
Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.
Simple and practical design
Dimensions: 7.09'' x 7.32'' x 0.98'' weight of 3.3 lbs,
Operating temperature of -40°F to +185°F. Natural
convection cooling system.
Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated ground connection for easy installation.

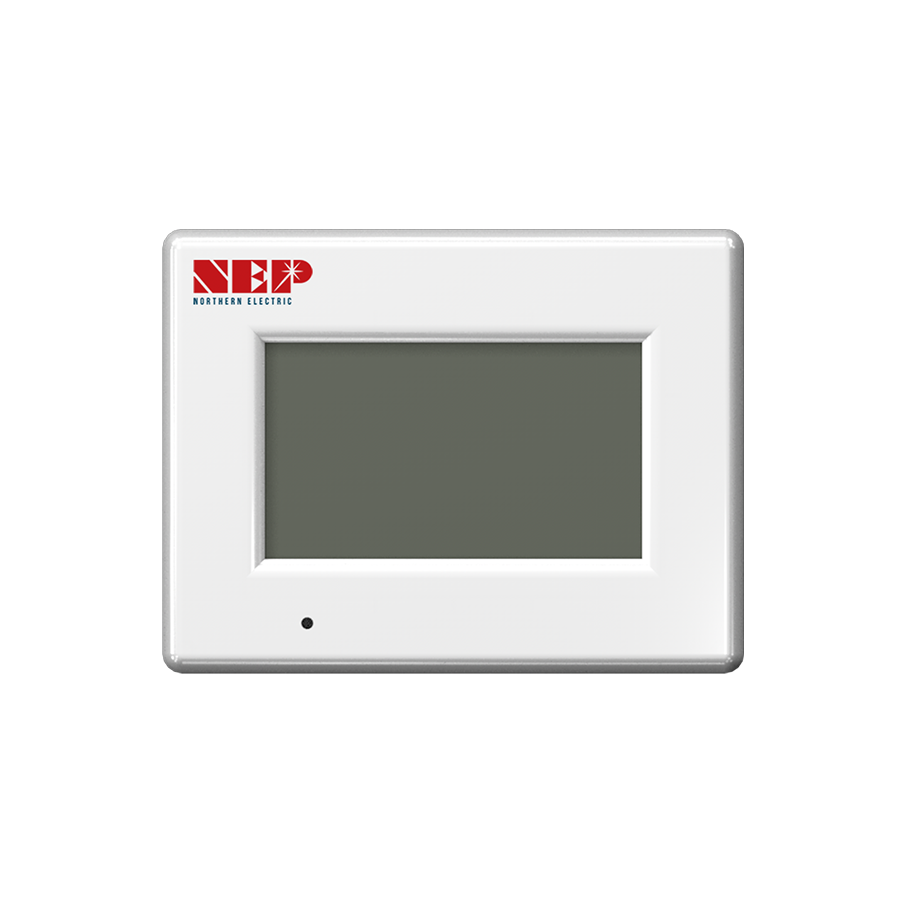

| Communication with Micro Inverter | Power Line Communication |
| Ethernet | 10/100 auto-sensing, auto-negotiation |
| USB | USB 2.0 interface, auto-sensing, auto-negation |
| Wi-Fi | Support (accessory required) |
| Monitoring capacity | 255 mirco inverters (depending on interference on power grid) |
| Display | LCD touch screen |
| AC inlet | 100-240 Vac, 50/60 Hz, 60mA |
| Power consumption | 3.5 watts maximum |
| Dimensions (W x H x D) | 6.69" x 4.33" x 1.46" (170mm x 110mm x 37mm) |
| Weight | 5.29 oz (150g) |
| Ambient temperature range | -40℃+55℃ (-40 ℃ to +131 ̊F) -40℃+49 ̊F (-40 ℃ to +120 ̊F) |
| Cooling | Natural Convection - no fans |
| Environmental rating | IP30. For installation indoors or in an NRTL -certified, NEMA type 3R enclosure. |
| Standard warranty term | 1 Year |
| Compliance | UL 60950-1 2 nd Edition Rev Dec 19, 2011 CSA C22.2 2 nd Edition Rev Dec 19, 2011 FCC Part 15 Class B AS/NZS 60950.1:2011 Inc A1 AS/NZS CISPR 22: 2009+A1:2010 EN 60950-1:2006+A11:2009+A1:2010 +A12:2011 EN 55022:201 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 55024:2010 EMC Directive 2004/108/EC |
